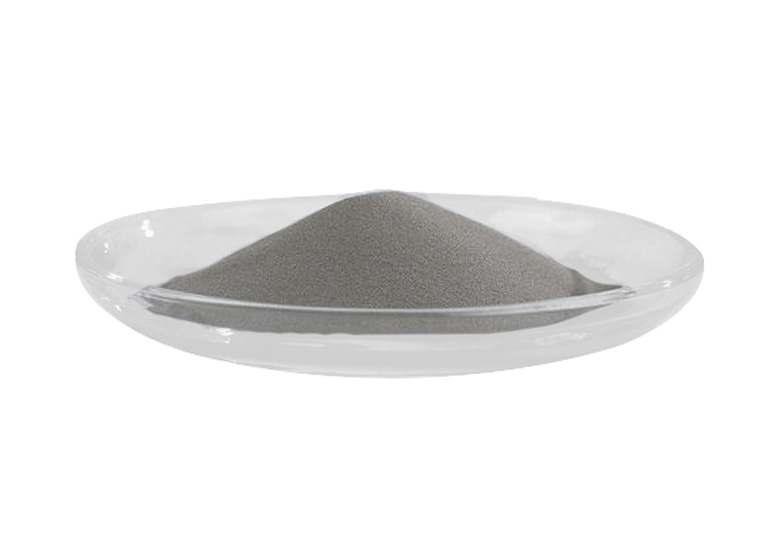

The RF series silver micro powder has the characteristics of good dispersibility, non agglomeration, and good compatibility with polyester and polyurethane. It is mainly used as the main filler for low-temperature curing pastes such as TP silver paste, laser engraving silver paste, and conductive silver paste.
+86-18988684013Powder growth mechanism, component segregation, particle size and distribution, microstructure control, aggregation, surface state and purity control methods, etc.
High temperature reaction process, process thermodynamics, and kinetic laws.
Multi component combination relationship, homogeneous mixing, crushing, dispersibility, surface additive combination, stability and adaptability control.
Process energy efficiency management and lean production management.
| Model | RF-03A | RF-09A | RF-06A | RF-08A |
| Application Areas | Low temperature curing paste | |||
| Average particle size (μm) | 0.90-1.50 | 1.20-2.40 | 1.20-2.00 | 1.60-2.80 |
| Bulk density (g/cm³ ) | 1.20-2.00 | 1.20-2.00 | 1.20-2.00 | 1.50-2.50 |
| Tap density (g/cm³ ) | 2.00-3.50 | 2.00-3.50 | 2.50-4.50 | 2.80-4.00 |
| Specific surface area （m²/g） | 0.60-1.00 | 0.40-0.80 | 0.45-0.65 | 0.30-0.60 |
| Morphology | Flake powder | Flake powder | Flocculent powder | Flocculent powder |
|
Electron microscope image |
|
|
|
|
