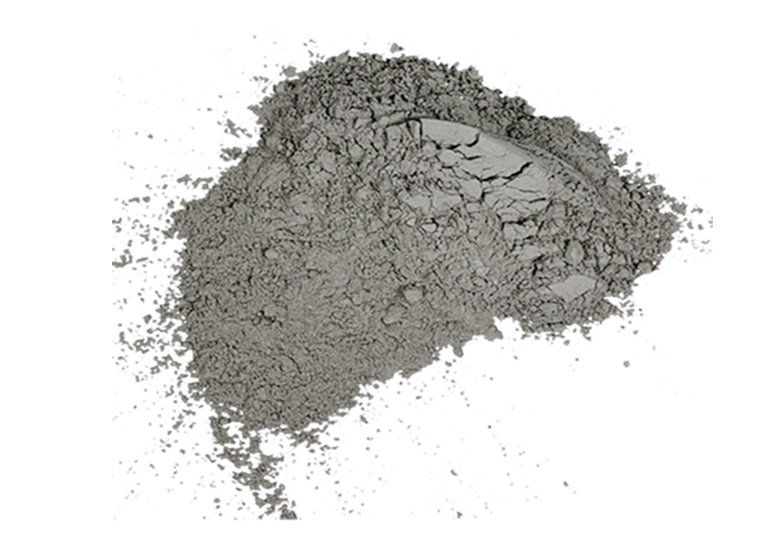

RF-20 ultrafine silver powder has the characteristics of good dispersibility, high specific surface area, and bright white silver layer sintered at medium and low temperatures. Mainly used as the main filler for medium and low temperature sintered conductor paste.
+86-18988684013Powder growth mechanism, component segregation, particle size and distribution, microstructure control, aggregation, surface state and purity control methods, etc.
High temperature reaction process, process thermodynamics, and kinetic laws.
Multi component combination relationship, homogeneous mixing, crushing, dispersibility, surface additive combination, stability and adaptability control.
Process energy efficiency management and lean production management.
| Model | RF-20 |
| Application Areas | Medium and low temperature sintering conductor paste |
| Average particle size (μm) | 0.3-0.6 |
| Bulk density (g/cm³ ) | 1.5-2.0 |
| Tap density (g/cm³ ) | 2.0-3.0 |
| Specific surface area （m²/g） | 4.0-6.5 |
|
Electron microscope image |
|
