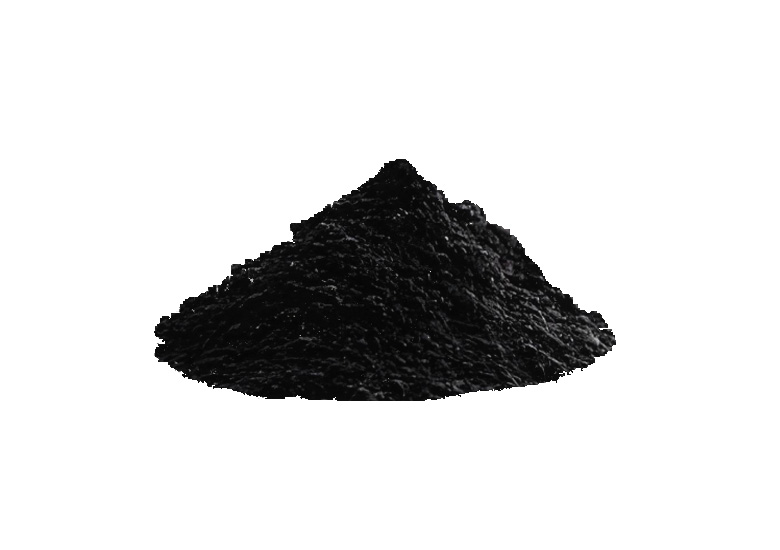

The product is a black powder suitable for the conductive phase in electronic pastes. The microstructure of the powder is spherical, with particle size in the sub micron range, good dispersibility, concentrated particle size distribution, and high purity. The electronic paste made from this powder can be sintered in an air atmosphere, forming electrodes with good conductivity. The product can be designed with different palladium silver ratios according to the customer's different firing temperatures.
+86-18988684013Powder growth mechanism, component segregation, particle size and distribution, microstructure control, aggregation, surface state and purity control methods, etc.
High temperature reaction process, process thermodynamics, and kinetic laws.
Multi component combination relationship, homogeneous mixing, crushing, dispersibility, surface additive combination, stability and adaptability control.
Process energy efficiency management and lean production management.
| Model | BF0100 | BF3070 | BF1585 | BF1090 | BF0595 | |
| Particles distribution(μm) | D10 | ＜1.0 | ＜1.0 | ＜1.0 | ＜1.0 | ＜1.0 |
| D50 | ＜2.0 | ＜2.0 | ＜2.0 | ＜2.0 | ＜2.0 | |
| D90 | ＜4.0 | ＜4.0 | ＜4.0 | ＜4.0 | ＜4.0 | |
| Tap density(g/cm³) | ＞2.5 | ＞2.5 | ＞2.5 | ＞2.5 | ＞2.5 | |
| Specific surface area(m²/g) | 1.0~2.5 | 1.0~2.5 | 1.0~2.5 | 1.0~2.5 | 1.0~2.5 | |

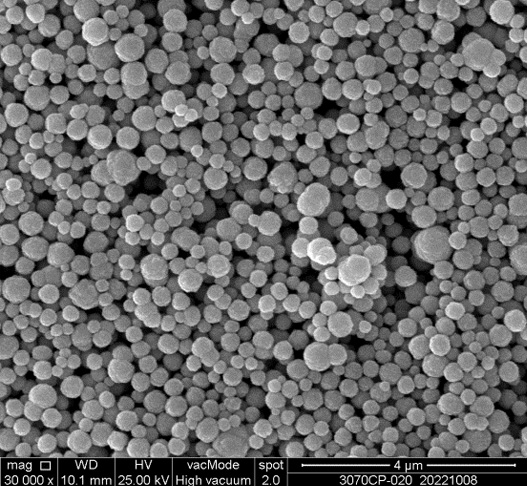

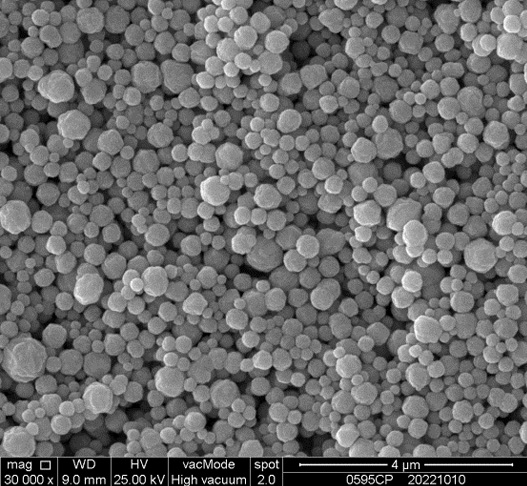

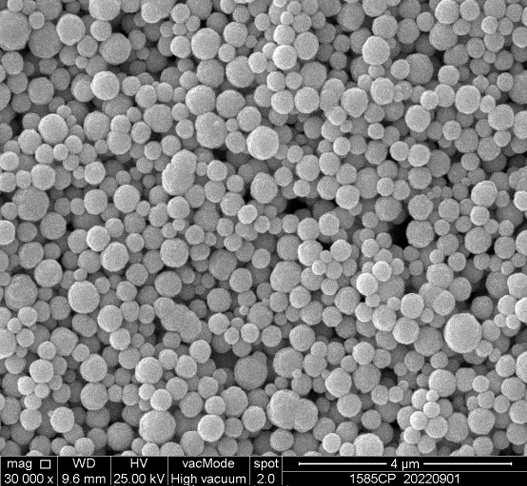

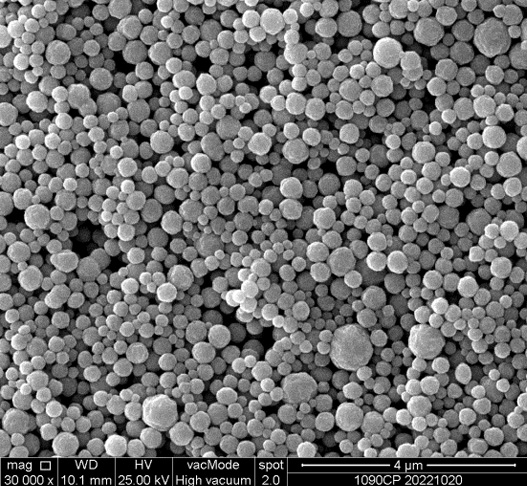

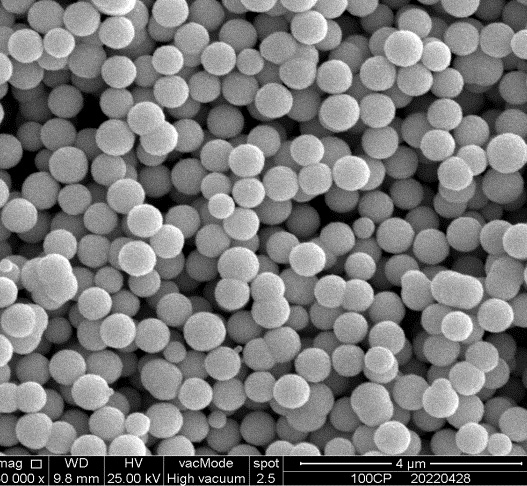

| Electron microscopy image |
|
|
|
|
|
|
