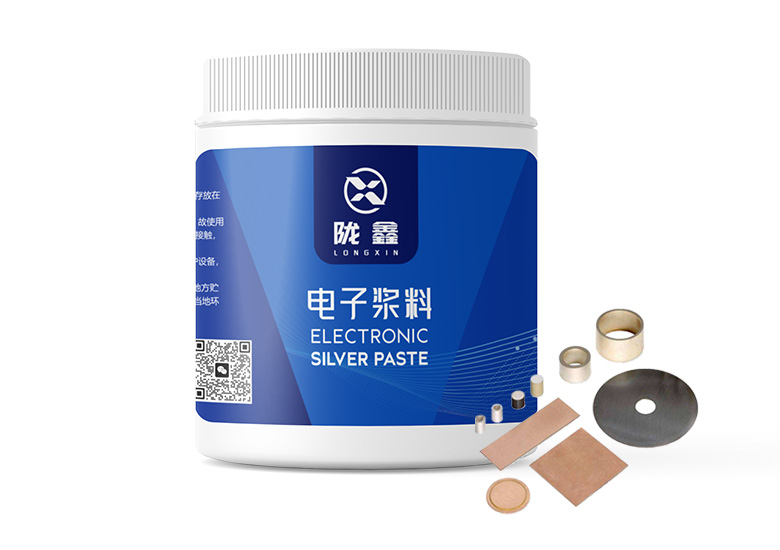

Silver gray paste like fluid, mainly composed of silver powder, glass powder, and organic adhesive, does not contain prohibited substances such as lead, cadmium, hexavalent chromium, etc., meets the environmental requirements of RoHS directive, and is used in electronic components such as GPS antenna, atomizer, and buzzer
+86-18988684013Control of characteristics such as particle size, morphology, specific surface area, and surface modification of metal/ceramic powders.
Control of physical and chemical properties, sintering performance, etc. of inorganic additives (glass, microcrystalline glass).
Control of rheological properties, viscosity, dispersibility, and mesh passing characteristics of organic carriers.
Matching with substrate, upper and lower functional layers (Ohmic contact, co firing, electronic energy level matching, etc.).
Batch supply applicable window width, product batch stability, high reliability.
| Model | Solids(%) |
Viscosity(Pa.S) |
Fineness |
Sintering temperature(℃) |
Application |
| HDJ12-07 | 70.0±2.0 | 630±50 | ≤7.0 | 800℃*15min | Piezoelectricity |
| HDJ12-17 | 68.0±2.0 | 430±50 | ≤3.5 | 800℃*12min | Atomizer |
|
HDJ22-22 |
53.0±2.0 | 170±50 | ≤5.0 | 800℃*15min | Buzzer |
|
(Note: The viscosity detection conditions are RION VT-06, 25 ± 0.5 ℃, 2 #, 62.5rpm) |
|||||
