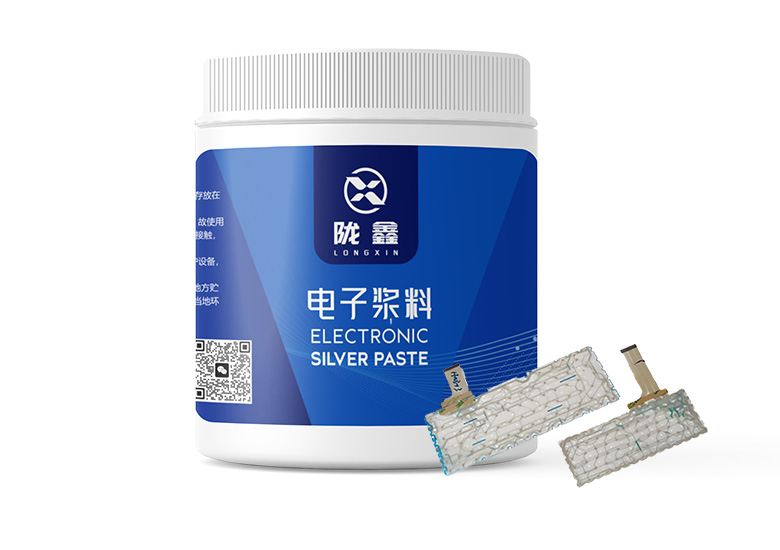

Mainly used for printing on resistive laptop keyboards and flexible circuit PET films, it can also be used for printing on special circuits such as PC, PVC film materials, etc
+86-18988684013Control of characteristics such as particle size, morphology, specific surface area, and surface modification of metal/ceramic powders.
Control of physical and chemical properties, sintering performance, etc. of inorganic additives (glass, microcrystalline glass).
Control of rheological properties, viscosity, dispersibility, and mesh passing characteristics of organic carriers.
Matching with substrate, upper and lower functional layers (Ohmic contact, co firing, electronic energy level matching, etc.).
Batch supply applicable window width, product batch stability, high reliability.
| Model | Viscosity（dPa.s） | Sheet resistivity（mΩ/sq/mil） | Curing conditions | Process recommendation |
| LMP41-01 | 130±50 | ≤10 |
Tunnel furnace: 135 ℃ * 20 min Oven: 135 ℃ * 40 min |
Screen print |
| LMP41-04 | 300±50 | ≤10 |
Tunnel furnace: 135 ℃ * 20 min Oven: 135 ℃ * 40 min |
Screen print |
| LMP41-05 |
2000±200 |
≤10 |
Tunnel furnace: 135 ℃ * 20 min Oven: 135 ℃ * 40 min |
Dispense、Screen print |
| The viscosity detection conditions for LMP41-01/LMP41-04 are RION VT-04, 25 ± 0.5 ℃, 2 #, 62.5rpm. The viscosity detection conditions for LMP 41-05 are NDJ-5S, 25 ± 0.5 ℃, 4 #, 60rpm. | ||||
