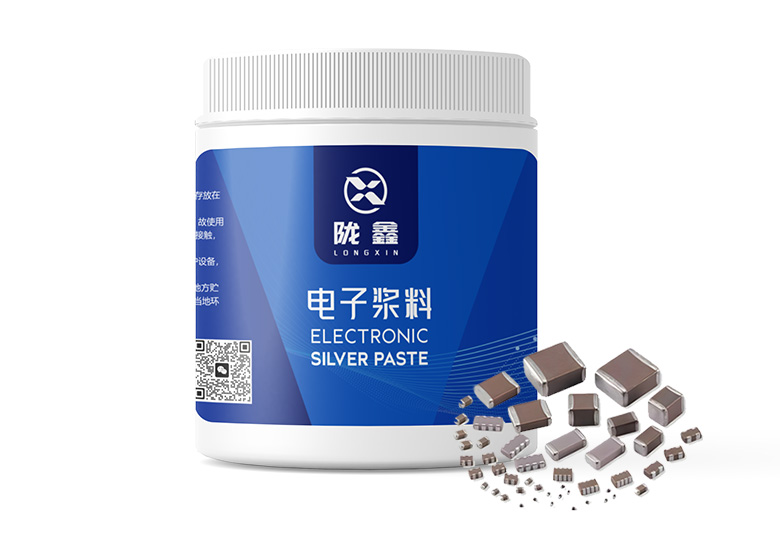

The product is a gray or gray black paste like fluid, used in various electronic components such as NME-MLCC as an internal electrode. The slurry is suitable for screen printing technology.
+86-18988684013Control of characteristics such as particle size, morphology, specific surface area, and surface modification of metal/ceramic powders.
Control of physical and chemical properties, sintering performance, etc. of inorganic additives (glass, microcrystalline glass).
Control of rheological properties, viscosity, dispersibility, and mesh passing characteristics of organic carriers.
Matching with substrate, upper and lower functional layers (Ohmic contact, co firing, electronic energy level matching, etc.).
Batch supply applicable window width, product batch stability, high reliability.
| Model | Solid content(%) | Metal ratio (Ag/Pd) | Viscosity (Pa.S) | Sintering temperature (℃) |
| APC0054 | 54.0±1.5 | 0/100 |
10.0~30.0 |
1445±75 |
| APC1065 |
65.5±0.5 |
90/10 |
12.0~14.0 |
950±50 |
| APK1550 |
50.8±0.3 |
85/15 |
10.0~12.0 |
990±30 |
| APC3052 |
52.5±0.5 |
70/30 |
16.0~19.0 |
1120±30 |
| APC4052 |
52.5±1.5 |
60/40 | 10.0~20.0 | 1160±20 |
| APC0560 | 60.0±1.0 | 95/5 |
10.0~20.0 |
930±30 |
| Note: The viscosity detection conditions are Brookfield HBDV - Ⅱ+, CP52, 25 ± 0.5 ℃ | ||||
