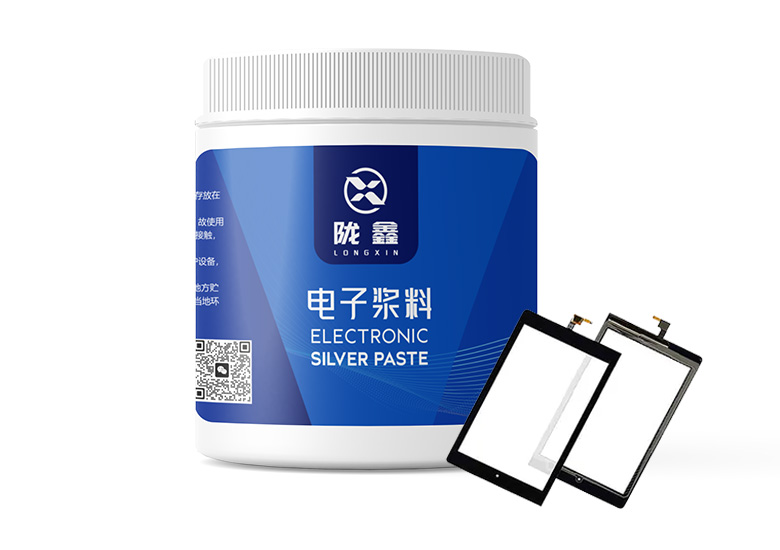

This product is developed specifically for capacitive, resistive, and touch screen laser engraved ultra-fine silver wire circuits, and can print universal conductive lines on ITOFILM and ITOGLASS. This product has passed ROHSRREACH and halogen certification from SGS and is considered an environmentally friendly product.
+86-18988684013Control of characteristics such as particle size, morphology, specific surface area, and surface modification of metal/ceramic powders.
Control of physical and chemical properties, sintering performance, etc. of inorganic additives (glass, microcrystalline glass).
Control of rheological properties, viscosity, dispersibility, and mesh passing characteristics of organic carriers.
Matching with substrate, upper and lower functional layers (Ohmic contact, co firing, electronic energy level matching, etc.).
Batch supply applicable window width, product batch stability, high reliability.
| Model | Viscosity（dPa.s） | Sheet resistivity（mΩ/sq/mil） | Curing conditions | Process recommendation | Application |
| K706 | 500±100 | ≤25 |
ITO FILM: 135℃*50 min ITO GLASS: 150℃*50 min |
Screen print | Capacitive screen |
| 1309M | 200±50 | ≤15 |
ITO FILM: 135℃*50 min ITO GLASS: 150℃*50 min |
Screen print | Resistive screen |
| LTP21-02 | 230±50 | ≤15 |
ITO FILM: 135℃*50 min ITO GLASS: 150℃*50 min |
Screen print | Resistive screen |
| LTP21-05 | 200±30 | ≤12 |
ITO FILM: 135℃*50 min ITO GLASS: 150℃*50 min |
Screen print | Resistive screen |
| YTP-03 | 150±30 | ≤25 |
ITO FILM: 135℃*50 min ITO GLASS: 150℃*50 min |
Screen print Laser Engraving |
Capacitive screen |
| (Note: The viscosity detection conditions are RION VT-04, 25 ± 0.5 ℃, 2 #, 62.5rpm) | |||||
